TYPAR Civil Geotextiles for Filtration / Separation

TYPAR Civil Geotextiles for Filtration / Separation

Typar Civil Geotextiles

Products:

TYPAR 3151, TYPAR 3201, TYPAR 3301, TYPAR 3341, TYPAR 3401, TYPAR 3501, TYPAR 3601, TYPAR 3801, TYPAR 3100

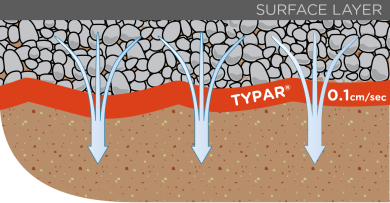

TYPAR® geotextiles create a layer of separation that develops a graded aggregate filter layer in the subgrade soil to maintain separation and eliminate the risk of soil mixing or ‘pumping’.  TYPAR promotes development of such filter layers due to its unique bonded fibers that create a pathway resembling a well-graded aggregate filter. TYPAR provides an effective filter structure since it has both high permeability, which will not change under compaction, and the ability to retain soil particles adjacent to it, minimizing the piping of subgrade soils and reducing fine particles from crossing the filtration layer.

  • Prevents mixing of the valuable base aggregate with the underlying subgrade soils
  • Enhances drainage of the subgrade soils while preventing pumping of fine soil particles into the base aggregate
  • Reduces the required amount of base aggregate by preventing intermixing
  • Assures long term prevention of base deterioration
